Replacing the Screen in an Asus X551CA

Can I replace my Asus X551CA screen?

A cracked or broken Asus X551CA screen can be a source of great frustration. Though it may seem daunting at first, however, the laptop screen replacement process is surprisingly simple. In act, some of our customers have managed to replace their broken screen in just half an hour! Below, you'll find instructions that will help guide you through the Asus X551CA screen replacement process.

How to replace an Asus X551CA screen

Step one

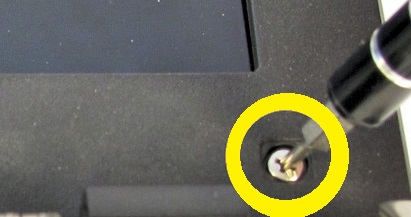

Before beginning your repair, make sure that you have removed the battery from your laptop. You should also ensure a.) that you have unplugged it from the mains power and b.) that you have disconnected any peripheral devices, (such as speakers, memory sticks and/or hard drives.) Next, prise off the aesthetic covers found on the bottom two corners of the front bezel. Underneath these covers, you'll find two screws. Remove these, also, and, set them aside safely.

Step two

Then, using a flat edged implement or you fingers, firmly, (but gently,) prise off the front bezel, working your way around the outer edges of the screen. Note: the front bezel is attached using clips which click into place. Once you are sure that you have sufficiently loosened the front bezel, carefully remove it from the machine and, set it aside safely. Having removed the front bezel, you should see the broken Asus X551CA screen sitting in a metal holding frame. Remove all of the screws holding it in place and, set them aside safely. Next, take hold of the top of the screen and and lay it, face, down, on the keyboard in front. At the back, (and bottom,) of the screen, you should see a cable attached. Disconnect this cable, (peeling back any tape or adhesive if necessary.)

Step three

You should now be able to remove the broken Asus X511CA screen from your machine.To fit your newly bought replacement screen, all you need to do is perform the above instructions in reverse. It's really that simple!

Further help

Replacement Asus X551CA screens


*Disclaimer: As with any repair you choose to undertake, cannot be held responsible for any damage caused to your device during the replacement/repair process. If you feel anxious or unsure about completing this repair yourself, it is best to err on the side of caution.
