Can I Replace my Asus U52F Screen?

Replacing an Asus U52F screen

We understand how deeply frustrating a broken screen can be.That's why we ship out all of our replacement screens quickly. Though you may feel daunted by the task laptop screen replacement is, in fact, surprisingly simple. Below, you'll find a detailed, step by step guide, (as well as a number of other resources,) that will help guide you through the Asus U52F screen replacement process.

How to replace an Asus U52F screen

Step one

Before doing anything else, make sure that you have unplugged your laptop from any, (and all,) power sources and, that you have removed the battery. You should also make sure that you have disconnected all peripheral devices, (eg. speakers, memory sticks and/or hard drives.) When you're ready to begin, use a flat edged implements, (a debit card or razor,) an opening tool or your fingers to prise the aesthetic covers, (used to disguise screws,) away from the bottom corners of the front bezel. Once you've removed, (and safely set aside the aesthetic covers,) remove the screws hidden underneath and, set them aside safely, also.

Step two

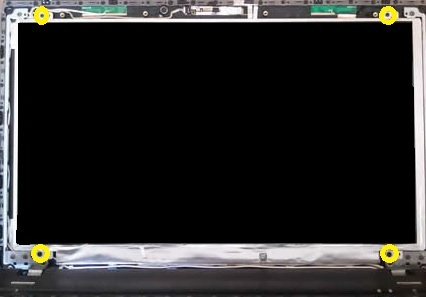

Next, use a flat edged implement or your fingers to work the front bezel away from the rest of the screen casing. Remember to take care when working the front bezel off of the laptop as it is brittle and likely to snap if handled too firmly. Work your way around each edge of the front bezel, easing it away from the laptop. When you are sure that you have loosened each edge of the front bezel sufficiently, lift it away from the laptop and, set it aside safely. Having removed the front bezel, you should see the broken Asus U52F screen being held in place by four further screws, (one in each corner.) Remove each of these screws and, set them aside safely.

Step three

Gently pull the top of the broken screen towards you, lying it to rest, face down, on the laptop keyboard. On the back of the screen you should see a thick cable attached to a gold connector. Disconnect this cable by pulling it free from its connector, (peeling back any strips of adhesive, if necessary.)

Step four

You should now be able to remove the damaged screen from your laptop. To fit your newly bought Asus U52F screen, simply complete the instructions, (as outlined above,) in reverse. It's really that simple!

Replacement Asus U52F screens



*Disclaimer: As with any repair you choose to undertake, Laptop-LCD-Screen.co.uk cannot be held responsible for any damage caused to your device during the replacement/repair process. If you feel anxious or unsure about completing this repair yourself, it is best to err on the side of caution.
