How to Replace a Dell Inspiron N4010 Screen

Replacing a Dell Inspiron N4010 screen

We understand how frustrating it can be when you break your laptop screen. That's why we ship all of our replacement screens quickly, whilst providing extensive help and advice. Below, you'll find detailed, step by step instructions that will help guide you through the Dell Inspiron N4010 screen replacement process.

A guide to Dell Inspiron N4010 screen replacement

Step one

Before doing anything else, make sure that you have removed the battery from your laptop and, that you have unplugged your machine from the mains power. You should also make sure that you have disconnected any, (and all,) peripheral devices, (such as speakers, memory sticks and/or hard drives.) When you're ready to begin, use your fingers or a flat edged implement, (a debit card, razor or plectrum,) to prise the front bezel away from the damaged display. Work your way around each edge of the front bezel, separating it from the rest of the screen casing. When you are sure that you have sufficiently loosened the front bezel, remove it from the laptop and, set it aside safely.

Step two

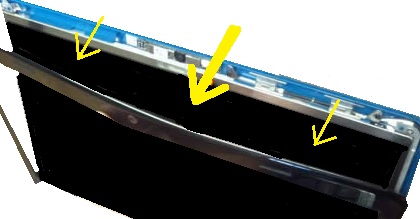

Once you've removed the front bezel you should see the broken Dell Inspiron N4010 screen being held in place by six screws. Remove each of these screws and, set them aside safely.

Step three

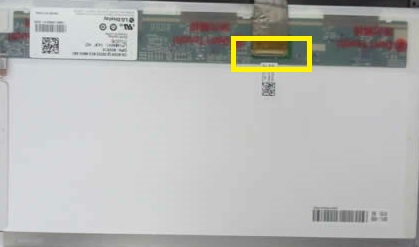

Take hold of the top of the broken screen and, gently pull it towards you, laying it to rest, face down, on the laptop keyboard. On the exposed back cover, you may see a cable which runs from the body of the laptop to the web camera, Disconnect this cable. Note: this cable is held in place using strong adhesive. At the bottom of the broken screen, you should see a thick cable, (with a golden end,) attached to a golden connector. Disconnect this cable, (peeling back any strips of adhesive, if necessary)

Step four

You should now be able to remove the broken screen from the laptop. To fit your newly bought Dell Inspiron N4010 screen, all you need to do is complete the above instructions in reverse. It's really that simple!

Replacement Dell Inspiron N4010 screens



*Disclaimer: As with any repair you choose to undertake, Laptop-LCD-Screen.co.uk cannot be held responsible for any damage caused to your device during the replacement/repair process. If you feel anxious or unsure about completing this repair yourself, it is best to err on the side of caution.
