Toshiba Satellite C655-S5212 Screen Replacement

Replacing a Toshiba Satellite C655-S5212 screen

If you've broken your Toshiba Satellite C655-S5212 screen, there's no need to worry! Though the task may seem daunting at first, laptop screen replacement requires very little technical expertise. In fact, some of our customers have managed to replace their broken laptop screen in just half an hour! Have a look at the hundreds of kind testimonials we receive from satisfied customers. Below, you'll find simple instructions, (and informative photos,) that will help guide you through the Toshiba Satellite C655-S5212 screen replacement process.

How to replace a Toshiba Satellite C655-S5212 screen

Step one

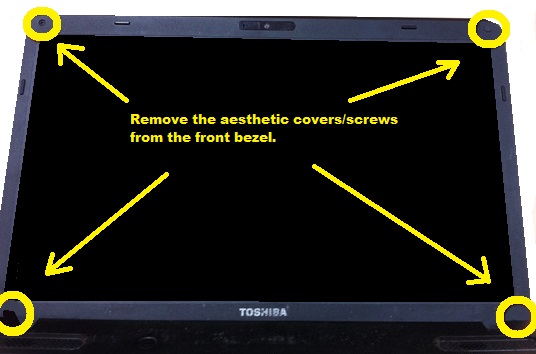

Firstly, unplug your laptop and remove the battery. You should also make sure that you have disconnected all external devices, (eg. memory sticks and/or speakers.) Next, use your fingers or a flat edged implement, (a debit card or razor,) to prise the aesthetic covers off of the front bezel. Once you've removed the aesthetic covers, remove the screws hidden underneath and, set them aside safely.

Step two

Close the lid of the laptop and turn the machine around so that you are able to remove the screws from the back of the hinges.

Step three

Prise the front bezel away from the rest of the screen casing. Work your way around each edge of the front bezel, loosening it as you go. Just a quick note: remember to take care when removing the front bezel so as to avoid snapping it in the process. Having exposed the broken screen, you should see four  screws holding it in place. Unscrew each of these screws and set them aside. You'll also need to remove a further six screws, (three on each side,) from the sides of the screen. Next, take hold of the top of the display and gently pull it towards you, laying it to rest, face down, on the laptop keyboard. On the back of the screen, you should see a ribbon-like cable, (with a gold end,) attached to a gold connector. Disconnect this cable.

Step four

Lift the broken screen away from your laptop, To fit your replacement Toshiba Satellite C655-S5212 screen, follow the above instructions in reverse order.

Replacement Toshiba Satellite C655-S5212 screens


*Disclaimer: As with any repair you choose to undertake, Laptop-LCD-Screen.co.uk cannot be held responsible for any damage caused to your device during the replacement/repair process. If you feel anxious or unsure about completing this repair yourself, it is best to err on the side of caution.
