Product Type: 1080p Full-HD eDP Laptop Screen
See also: 04X5500 04X5501 SD10A09790 04X5480 04X4870 B156HTN03.4 HW3A 04X5137 04X4852 N156HGE EA1 REV.C1 00HN836 SD10G56625 B156HTN03.6 HW2A 04X0888 B156HTN03.4 HW1A 04X0529 00HM130 00HN888 00HM082 SD10A09800 N156HGE EA2 REV.C1
Condition: New & Class 1 (ISO-9241)
Warranty: 2 years return to base

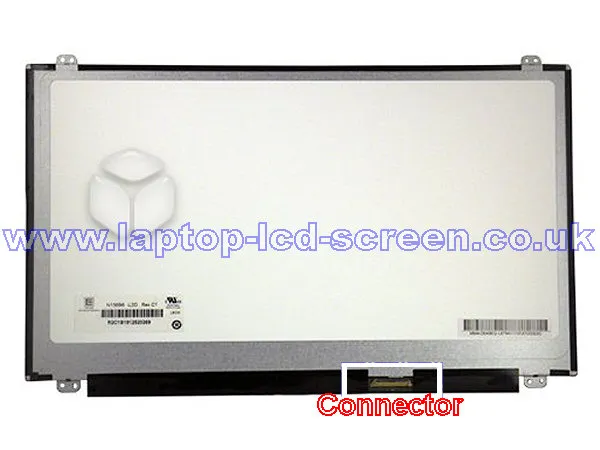

You are viewing a Ibm Lenovo Thinkpad W540 20BG001KUK Class I and fully compatible (with 04X5500, 04X5501, SD10A09790, 04X5480, 04X4870, B156HTN03.4-HW3A, 04X5137, 04X4852, N156HGE-EA1-REV.C1, 00HN836, SD10G56625, B156HTN03.6-HW2A, 04X0888, B156HTN03.4-HW1A, 04X0529, 00HM130, 00HN888, 00HM082, SD10A09800, N156HGE-EA2-REV.C1, and other models) LCD part. We can supply this LCD with a MATTE (Anti-Glare) finish. Please check that your original screen has a glass area of 15.6" inches diagonally (not including the frame) and has a maximum resolution of 1920X1080 (or is known as FULL HD resolution or 1080p). This screen's backlight is powered by LED backlight technology. The data connector on this screen has 30 pins and is an eDP displayport, with a 0.5mm pitch, which can be found at the bottom right side of the screen - on the back of the LCD. Ibm Lenovo Thinkpad W540 20BG001KUK screen replacement cost is just £43.14 plus shipping.
Watch our universal LCD screen replacement video - Opens in external window.
You need to replace the broken screen. Watch our video on How to replace any laptop screen.
You might need this screen replacement. Check with an external monitor. Here are the instructions to check the problem related to white screen on laptop.
