Enlarged Image
30 Pins - 19mm wide connector


ASUS VIVOBOOK 15 K513E Series Full-HD Replacement Laptop Screen

SKU
1678703
Condition
NEW, Class 1 (ISO-9241)
Size
15.6"
Resolution
1920X1080 (FHD) 1080p
Backlight
LED
Finish
Matte (Anti-Glare)
Connector
30 PIN EDP (bottom right)
Connector Pitch
0.5mm (Large)
Display Mode
IPS
Screen Bezel
ASUS NanoEdge™ Screen
 ⓘ Specifications Help
Alternative Finish
Glossy / Glare
Alternative Technology Available
60HZ TN
72% NTSC / 100% sRGB

Have you got the right product?

The currently selected product on this page is a 15.6" 1920X1080 (FULL HD) with a LED backlight and a 30 Pin signal, bottom right connector, with a 0.5mm connector pitch.

This Vivobook computer has other screen types fitted. You must make sure you purchase the correct one which uses the same resolution and connector type.

Can I Upgrade My Screen?    How do I Order By Screen Model?

Prices shown include UK VAT

 Variations of Vivobook 15 series screens
Type
Backlight
Price
Trade

 ASUS VIVOBOOK 15 K513E SERIES 15.6 FULL HD OLED
Gloss. Bottom right connector 30 pins (0.5mm) OLED
15.6"
FULL-HD
1920X1080

OLED

£190.80

£177.44



Legend:
    Available to buy online
    Unavailable

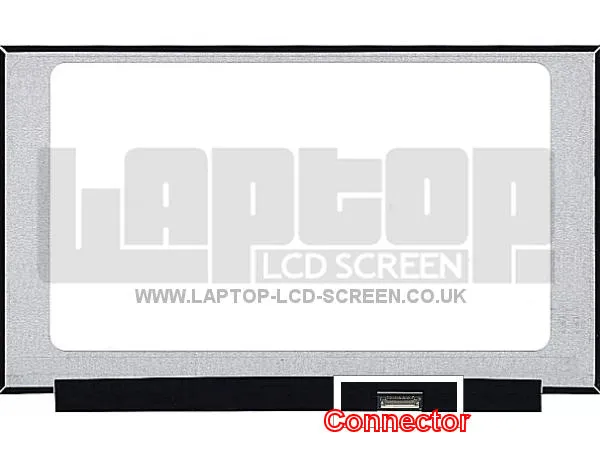

Vivobook 15 series replacement laptop LCD screen
ASUS VIVOBOOK 15 K513E SERIES 15.6 FULL HD LAPTOP SCREEN
15.6"
1920X1080
FULL HD
LED
30 Pin/19mm

Class I Display for ASUS laptops
This is a replacement screen for the Asus Vivobook 15 K513e (FHD) computer. Class I and fully compatible LCD display part.

Vivobook 15 series LCD specifications.
We can supply this LCD with a MATTE (Anti-Glare) finish. Please check that your original screen has a glass area of 15.6" inches diagonally (not including the frame) and has a maximum resolution of 1920X1080 (or is known as FULL HD resolution or 1080p).

Technical data for the Vivobook 15 series LCD.
This screen's backlight is powered by LED backlight technology. The data connector on this screen has 30 pins and is an eDP displayport, with a 0.5mm pitch, which can be found at the bottom right side of the screen - on the back of the LCD. This is a genuine IPS (AAS/ADS/AHVA or FFS/UWVA/PLS) screen offering ultra wide viewing angles.

100% Compatible part.
For the Asus Vivobook 15 K513e (FHD).

Cost of ASUS screen.
Asus Vivobook 15 K513e (FHD) screen replacement cost is just £43.14 plus shipping.

Warranty
We give an industry leading 2 year warranty on all our high quality ASUS replacement laptop screens. Terms and conditions apply.

Fast Delivery
UK and Europe only.



Certified Screen Replacement5 Star Rated Icon
Certified Screen Replacement5 Star Rated Icon



ASUS VIVOBOOK 15 K513E SERIES FULL-HD REPLACEMENT SCREEN: Buyer's Guide


Laptop-LCD-Screen.co.uk guarantee you a working Asus Vivobook 15 K513e (FHD) screen replacement, or your money back. With our 18 years of trading experience, we can warrant that claim with real expertise. If you research our company, you will encounter our impressive accumulation of fantastic reviews on sites like Trustpilot and Google.

Is the Asus Vivobook 15 K513e Series 15.6 Full Hd Screen Replacement, the correct product for you?
ASUS are notorious for fitting different types of screen to the Asus Vivobook 15 K513e (FHD) machine, and as such we ask you to please check the specifications of this screen match your original. To be 100% sure, it's best to remove your old screen first, and make sure it looks similar to the photograph we provide, and that the resolution, connector type and connector position match as well. Other screens available...

Changing screen resolution.
If you are looking to upgrade (or downgrade) the resolution, say from HD to FULL HD, you need to check a couple of things first before you try the upgrade. Check that the upgrade screen you want to purchase has the same mountings, connector type and connector position, by comparing the photographs on each product page and the connector specifications in the description. Next you'll need to make sure you have a screen cable fitted that is capable of the resolution you wish to change to. As this is tricky we advise against upgrading unless you know what you are doing.

Glass finish
ASUS Screens can be manufactured in MATTE or GLOSSY finish. MATTE is better for outdoor use and GLOSS is better for indoor use. GLOSS screens will display brighter and richer colours, and MATTE screens will look duller, but are less reflective. We try where possible to offer both options, if we have both options, we will offer them in the product description.

Screen size measurement
We always list the size of the screen to help you determine which product is right for you. Screen sizes are measured diagonally, from corner to corner, of the visible display area only. The measurement does not include any frame (or bezel), just the area that lights up and is part of the display area.

18 years' experience
We have the largest screen replacement database on the Internet. In addition to this, you have peace of mind that we have many years of trading, during which time we have accumulated a wealth of knowledge, which enables us to provide the right screens, first time. The long time we have been established has also enabled us to build sterling relationships with top manufacturers like AUOChiMei InnoluxSamsungHannstarToshibaLG DisplaySharpBOEHydis Hundai,  and others.

Better quality screens
We insist on higher grade Class I panels, (note that there is no such thing as a Grade A screen). We pay a little more to ensure our products impress and please every time, and give a long working lifetime. With more than a decade of experience our team will ensure your high quality replacement screen is as good - or better than your original display, and that the whole process from purchase, through the delivery and to installation, is seamless. And this promise is endorsed by our customer reviews.



Do I need a new Vivobook 15 series laptop screen?

Solution: You need to replace the broken screen. Watch our video on How to replace a Asus Vivobook 15 K513e (FHD) LCD screen part.

Solution: You might need to buy this screen replacement product. Check your video cable behind the screen. Here are instructions to check on laptop screen flickering.

Solution: You may need to replace the screen. Check with an external monitor. Here are the instructions to check vertical lines on laptop screen. You can follow these guidelines for horizontal lines on laptop screen also.

Solution: You might need this screen replacement. Check with an external monitor. Here are the instructions to check with an external monitor.

Solution: You might need this screen replacement. Check with an external monitor. Here are the instructions to check the problem related to white screen on laptop.

Asus Vivobook 15 K513e (fhd) Screen Installation Video

Don't like videos? See our Step by Step generic screen replacement instructions.
See how to find out which model of screen you have.

Recently viewed products

    Warning!

    This screen is only for devices with 15.6" displays @ 1920X1080 (FULL HD) resolution with a LED backlight and a 30 Pin signal, bottom right connector, with a 0.5mm connector pitch.

    There are different screen type choices for your device on this page. You must choose the correct type. If you are unsure which type to choose, we recommend removing your old screen and searching for the screen model number instead.
