Product ID/SKU: 649775 Item Condition: NEW, Class 1 (ISO-9241) Warranty: 2 Years Size: 15.6"  Resolution: 1920X1080 (FHD) 1080p Backlight: LED Touch screen: No Glass: Matte (Anti Glare) Connector: 30 Pin eDP (bottom right) Connector Pitch: 0.5mm Refresh Rate: 60hz Special feature: IPS technology Also available with a GLOSS glass finish.
Alternative Available:60HZ TN or 120HZ TN
Ibm Lenovo Fru 5d10f86071 15.6 No DIGITIZER

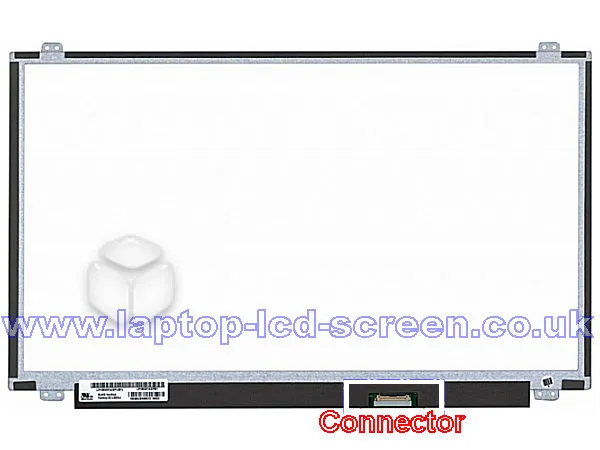

This item is an LCD compatible with Ibm Lenovo Fru 5D10F86071. For more information about what we're sending please see the Buyer's Guide tab. This is a class I screen, and guaranteed to perfectly replace your original display LCD screen part. We can supply this LCD with a MATTE (Anti-Glare) finish. Please check that your original screen has a glass area of 15.6" inches diagonally (not including the frame) and has a maximum resolution of 1920X1080 (or is known as FULL HD resolution or 1080p). This screen's backlight is powered by LED backlight technology. The data connector on this screen has 30 pins and is an eDP displayport, with a 0.5mm pitch, which can be found at the bottom right side of the screen - on the back of the LCD. This is a genuine IPS (AAS/ADS/AHVA or FFS/UWVA/PLS) screen offering ultra wide viewing angles. IBM Lenovo FRU 15.6 inch screens can sometimes come touch screen enabled, this product is a non-touchscreen model. We are supplying the raw LCD panel only without the front touch glass (digitizer). Ibm Lenovo Fru 5D10F86071 screen replacement cost is just £62.34 plus shipping.
Laptop-LCD-Screen.co.uk guarantee you a working Ibm Lenovo Fru 5D10F86071 screen replacement, or your money back. With our 16 years of trading experience, we can warrant that claim with real expertise. If you research our company, you will encounter our impressive accumulation of fantastic reviews on sites like Trustpilot and Google.
Touch Screen Models Touch screen computers have two parts to the viewable display. They have a screen, like any computer and in addition they have another layer over the top of the screen that works like a mouse. That 2nd part is called a touch glass digitizer, and we aren't supplying that, we're selling just the LCD screen. In some cases you can re-use the old digitizer, unless of course it is damaged. If your old digitiser is damaged, this product is not for you. If your computer is not a touch screen model, you can go ahead and use this product with no problems.More about this...
Ordering by Screen Part Number
When ordering by screen model number, the actual part code sent may vary from the original. We will always send the most currently available model to replace the original. Screen part code availability is always changing, what we do promise is that the part code we send will be as good, or often better than the original for the specifications quoted on this page. This promise excludes GAMUT, CD/m and Nits specs. More about this...
Glass finish Lenovo Screens can be manufactured in MATTE or GLOSSY finish. MATTE is better for outdoor use and GLOSS is better for indoor use. GLOSS screens will display brighter and richer colours, and MATTE screens will look duller, but are less reflective. We try where possible to offer both options, if we have both options, we will offer them in the product description. More about this...
Screen size measurement We always list the size of the screen to help you determine which product is right for you. Screen sizes are measured diagonally, from corner to corner, of the visible display area only. The measurement does not include any frame (or bezel), just the area that lights up and is part of the display area. More info about this...
16 years' experience We have the largest screen replacement database on the Internet. In addition to this, you have peace of mind that we have many years of trading, during which time we have accumulated a wealth of knowledge, which enables us to provide the right screens, first time. The long time we have been established has also enabled us to build sterling relationships with top manufacturers like
Better quality screens We insist on higher grade Class I panels, (note that there is no such thing as a Grade A screen). We pay a little more to ensure our products impress and please every time, and give a long working lifetime. With more than a decade of experience our team will ensure your high quality replacement screen is as good - or better than your original display, and that the whole process from purchase, through the delivery and to installation, is seamless. And this promise is endorsed by our customers.
You may need to replace the screen. Check with an external monitor. Here are the instructions to check vertical lines on laptop screen. You can follow these guidelines for horizontal lines on laptop screen also.
