You are at > Home > Replacement LCD parts > IVO LCDs (All) > IVO 15.6"
×
Enlarged Image

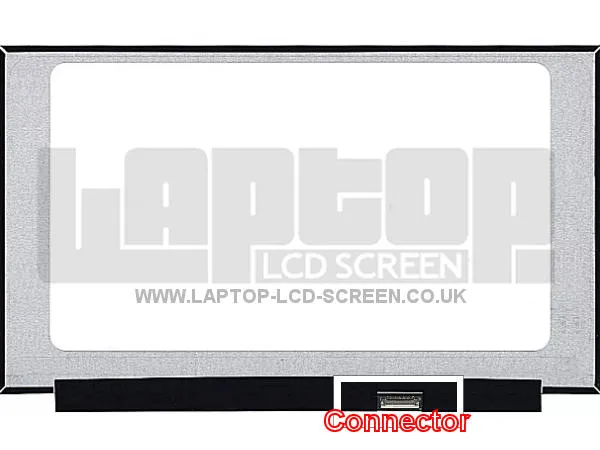

30 Pins - 19mm wide connector


IVO M156NWF6 R0 Replacement LCD Screen Part

SKU
2711297
Condition
NEW, Class 1 (ISO-9241)
Size
15.6"
Resolution
1920X1080 (FHD) 1080p
Backlight
LED
Finish
Matte (Anti-Glare)
Connector
30 PIN EDP (bottom right)
Connector Pitch
0.5mm (Large)
Display Mode
IPS
 ⓘ Specifications Help
Alternative Finish
Glossy / Glare
Alternative Technology Available
60HZ TN
72% NTSC / 100% sRGB
£43.14
 + Shipping Costs
Quantity:
Order in 0 Minutes for UK delivery Tuesday By 1PM

You'll Also Need:
LCD Mounting Strips      Stretch Release Tape£4.99+VAT (What's this?) Stretch Adhesive Tape is a special LCD tape that can be removed easily (unlike double-sided tape), by pulling tabs at the end of the tape.
IVO 15.6 inch parts replacement laptop LCD screen
IVO M156NWF6 R0 15.6
15.6"
1920X1080
FULL HD
LED
30 Pin/19mm

Class I Display - 100% Compatibility for IVO screen replacement.
This item is an LCD compatible with Ivo M156nwf6 R0. For more information about what we're sending please see the Buyer's Guide tab. This is a class I screen, and guaranteed to perfectly replace your original display LCD display part.

IVO 15.6" LCD specifications.
We can supply this LCD with a MATTE (Anti-Glare) finish. Please check that your original screen has a glass area of 15.6" inches diagonally (not including the frame) and has a maximum resolution of 1920X1080 (or is known as FULL HD resolution or 1080p).

Technical data for the IVO 15.6" LCD.
This screen's backlight is powered by LED backlight technology. The data connector on this screen has 30 pins and is an eDP displayport, with a 0.5mm pitch, which can be found at the bottom right side of the screen - on the back of the LCD. This is a genuine IPS (AAS/ADS/AHVA or FFS/UWVA/PLS) screen offering ultra wide viewing angles.

Cost of IVO screen.
Ivo M156nwf6 R0 screen replacement cost is just £43.14 plus shipping.

Warranty
We give an industry leading 2 year warranty on all our high quality IVO replacement laptop screens. Terms and conditions apply.

Fast Delivery
UK and Europe only.



Certified Screen Replacement5 Star Rated Icon
Certified Screen Replacement5 Star Rated Icon



IVO M156NWF6 R0 LAPTOP SCREEN: Buyer's Guide


Laptop-LCD-Screen.co.uk guarantee you a working Ivo M156nwf6 R0 screen replacement, or your money back. With our 18 years of trading experience, we can warrant that claim with real expertise. If you research our company, you will encounter our impressive accumulation of fantastic reviews on sites like Trustpilot and Google.

Ordering by Screen Part Number



When ordering by screen model number, the actual part code sent may vary from the original. We will always send the most currently available model to replace the original. Screen part code availability is always changing, what we do promise is that the part code we send will be as good, or often better than the original for the specifications quoted on this page. This promise excludes GAMUT, CD/m and Nits specs, (although we will sometimes guarantee Gamut or %RGB on some premium models).

Glass finish
IVO Screens can be manufactured in MATTE or GLOSSY finish. MATTE is better for outdoor use and GLOSS is better for indoor use. GLOSS screens will display brighter and richer colours, and MATTE screens will look duller, but are less reflective. We try where possible to offer both options, if we have both options, we will offer them in the product description.

Screen size measurement
We always list the size of the screen to help you determine which product is right for you. Screen sizes are measured diagonally, from corner to corner, of the visible display area only. The measurement does not include any frame (or bezel), just the area that lights up and is part of the display area.

18 years' experience
We have the largest screen replacement database on the Internet. In addition to this, you have peace of mind that we have many years of trading, during which time we have accumulated a wealth of knowledge, which enables us to provide the right screens, first time. The long time we have been established has also enabled us to build sterling relationships with top manufacturers like AUOChiMei InnoluxSamsungHannstarToshibaLG DisplaySharpBOEHydis Hundai,  and others.

Better quality screens
We insist on higher grade Class I panels, (note that there is no such thing as a Grade A screen). We pay a little more to ensure our products impress and please every time, and give a long working lifetime. With more than a decade of experience our team will ensure your high quality replacement screen is as good - or better than your original display, and that the whole process from purchase, through the delivery and to installation, is seamless. And this promise is endorsed by our customer reviews.



Do I need a new IVO 15.6" parts laptop screen?

Solution: You need to replace the broken screen. Watch our video on How to replace any laptop screen.

Solution: You might need to buy this screen replacement product. Check your video cable behind the screen. Here are instructions to check on laptop screen flickering.

Solution: You may need to replace the screen. Check with an external monitor. Here are the instructions to check vertical lines on laptop screen. You can follow these guidelines for horizontal lines on laptop screen also.

Solution: You might need this screen replacement. Check with an external monitor. Here are the instructions to check with an external monitor.

Solution: You might need this screen replacement. Check with an external monitor. Here are the instructions to check the problem related to white screen on laptop.

Universal Laptop Screen Installation Video

147,865 views • 23 May 2021  |  Slow Playback? Standard Quality
