You are at > Home > Laptop Screens > Asus LCDs (All) > Asus TUF Gaming
Enlarged Image
25mm wide connector

ASUS TUF GAMING F15 FX507 Series QHD 165hz Replacement 2560x1440 Laptop Screen

NEW, Class 1 (ISO-9241)
2560X1440 (QHD) 2K QHD
Matte (Anti-Glare)
40 PIN EDP (bottom right)
Connector Pitch
0.5mm (Large)
Frame Rate
165hz Refresh
Display Mode
Screen Bezel
Narrow Border/Narrow Bezel

Upgrade Technology Available:
240HZ IPS or 360HZ IPS
Order in 0 Minutes for UK delivery Tuesday By 1PM

 Shipping Costs

ⓘ  Add 10 or more to cart to buy these for £44.38 + VAT [ Wholesale Information ]

LCD Mounting Strips

Stretch Release Tape£4.99+VAT

ⓘ What is Stretch Release Tape?

Have you got the right product?

The currently selected product on this page is a 15.6" 2560X1440 (QHD) with a LED backlight and a 40 Pin signal, bottom right connector, with a 0.5mm connector pitch.

This Asus computer has other screen types fitted. You must make sure you purchase the correct one which uses the same resolution and connector type.

Can I Upgrade My Screen?    How do I Order By Screen Model?

Prices shown include UK VAT

 Variations of Asus TUF Gaming screens

Matte. Bottom right connector 40 pins (0.5mm)




Matte. Bottom right connector 40 pins (0.4mm)


No Stock


    Available to buy online
Asus TUF Gaming replacement laptop LCD screen
Asus Tuf Gaming F15 Fx507 Series 15.6 Qhd 165hz Screen Replacement
LED 165hz
40 PIN / 25mm

Class I Display for ASUS laptops
This is a replacement screen for the Asus Tuf Gaming F15 Fx507 (qhd) (165hz) computer. Class I and fully compatible LCD display part.

Asus TUF Gaming LCD specifications.
We can supply this LCD with a MATTE (Anti-Glare) finish. Please check that your original screen has a glass area of 15.6" inches diagonally (not including the frame) and has a maximum resolution of 2560X1440 (or is known as QHD resolution ).

Technical data for the Asus TUF Gaming LCD.

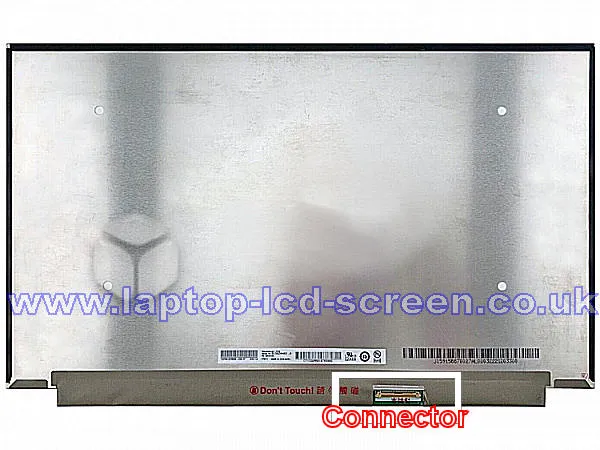

This screen's backlight is powered by LED backlight technology. The signal connector on this LCD is 40 pin and is an eDP displayport, with a 0.5mm pitch, with a 302PL Pin Configuration, which can be found at the bottom right side of the screen - on the back of the LCD. Special features: 165hz refresh rate. This is a genuine IPS (AAS/ADS/AHVA or FFS/UWVA/PLS) screen offering ultra wide viewing angles.

100% Compatible part.
For the Asus Tuf Gaming F15 Fx507 (qhd) (165hz) . This display will replace many screen makes and models, including (but not limited to), the following part codes: N156KME-GNA

Easy Mount Display.
This slimline, Narrow-Bezel ASUS LCD features an ultra-thin frame, that requires no awkward screws, and can be securely mounted, to the laptop's top lid using LCD mounting adhesive strips. The LCD is easily removed if needed without voiding your warranty. (strips available separately).

Cost of ASUS screen.
Asus Tuf Gaming F15 Fx507 (qhd) (165hz) screen replacement cost is just £61.14 plus shipping.

We give an industry leading 2 year warranty on all our high quality ASUS replacement laptop screens. Terms and conditions apply.

Fast Delivery
UK and Europe only. View Shipping Costs.

Certified Screen Replacement5 Star Rated Icon
Certified Screen Replacement5 Star Rated Icon

Asus Tuf Gaming F15 Fx507 Series Qhd 165hz Replacement Screen Buyer's Guide guarantee you a working Asus Tuf Gaming F15 Fx507 (qhd) (165hz) screen replacement, or your money back. With our 18 years of trading experience, we can warrant that claim with real expertise. If you research our company, you will encounter our impressive accumulation of fantastic reviews on sites like Trustpilot and Google.

165hz Technology
This screen has a refresh rate of 165hz. This means the screen can refresh itself 165 times a second. This is more than twice as fast as a standard 60hz display. This makes for smoother high speed animations and video display, which is ideal for movies and games.

Is the Asus Tuf Gaming F15 Fx507 Series 15.6 Qhd 165hz Screen Replacement, the correct product for you?
ASUS are notorious for fitting different types of screen to the Asus Tuf Gaming F15 Fx507 (qhd) (165hz) machine, and as such we ask you to please check the specifications of this screen match your original. To be 100% sure, it's best to remove your old screen first, and make sure it looks similar to the photograph we provide, and that the resolution, connector type and connector position match as well. Other screens available...

Changing screen resolution.
If you are looking to upgrade (or downgrade) the resolution, say from HD to FULL HD, you need to check a couple of things first before you try the upgrade. Check that the upgrade screen you want to purchase has the same mountings, connector type and connector position, by comparing the photographs on each product page and the connector specifications in the description. Next you'll need to make sure you have a screen cable fitted that is capable of the resolution you wish to change to. As this is tricky we advise against upgrading unless you know what you are doing. More about this...

Glass finish
ASUS Screens can be manufactured in MATTE or GLOSSY finish. MATTE is better for outdoor use and GLOSS is better for indoor use. GLOSS screens will display brighter and richer colours, and MATTE screens will look duller, but are less reflective. We try where possible to offer both options, if we have both options, we will offer them in the product description. More about this...

Screen size measurement
We always list the size of the screen to help you determine which product is right for you. Screen sizes are measured diagonally, from corner to corner, of the visible display area only. The measurement does not include any frame (or bezel), just the area that lights up and is part of the display area. More info about this...

18 years' experience
We have the largest screen replacement database on the Internet. In addition to this, you have peace of mind that we have many years of trading, during which time we have accumulated a wealth of knowledge, which enables us to provide the right screens, first time. The long time we have been established has also enabled us to build sterling relationships with top manufacturers like AUOChiMei InnoluxSamsungHannstarToshibaLG DisplaySharpBOEHydis Hundai,  and others.

Better quality screens
We insist on higher grade Class I panels, (note that there is no such thing as a Grade A screen). We pay a little more to ensure our products impress and please every time, and give a long working lifetime. With more than a decade of experience our team will ensure your high quality replacement screen is as good - or better than your original display, and that the whole process from purchase, through the delivery and to installation, is seamless. And this promise is endorsed by our customers.

Get more help

Do I need a new Asus TUF Gaming laptop screen?

Solution: You might need to buy this screen replacement product. Check your video cable behind the screen. Here are instructions to check on laptop screen flickering.

Solution: You may need to replace the screen. Check with an external monitor. Here are the instructions to check vertical lines on laptop screen. You can follow these guidelines for horizontal lines on laptop screen also.

Solution: You might need this screen replacement. Check with an external monitor. Here are the instructions to check with an external monitor.

Solution: You might need this screen replacement. Check with an external monitor. Here are the instructions to check the problem related to white screen on laptop.

More solutions can be found by checking our Laptop Screen Troubleshooter

Asus Tuf Gaming F15 Fx507 (qhd) (165hz) Screen Installation Video

Don't like videos? See our Step by Step generic screen replacement instructions.
See how to find out which model of screen you have.
Video no good? Send us a better video, or make a suggestion.

Recently viewed products


    This screen is only for devices with 15.6" displays @ 2560X1440 (QHD) resolution with a LED backlight and a 40 Pin signal, bottom right connector, with a 0.5mm connector pitch.

    There are different screen type choices for your device on this page. You must choose the correct type. If you are unsure which type to choose, we recommend removing your old screen and searching for the screen model number instead.
