Brand: Compatible with AUO
Product Type: 1080p Full-HD eDP Screen compatible with B156han02.1 HW1A
See also: 5D10M53949
Condition: New & Class 1 (ISO-9241)
Warranty: 2 years return to base
Touchscreen: No (Digitiser not supplied) [ Why not? ]

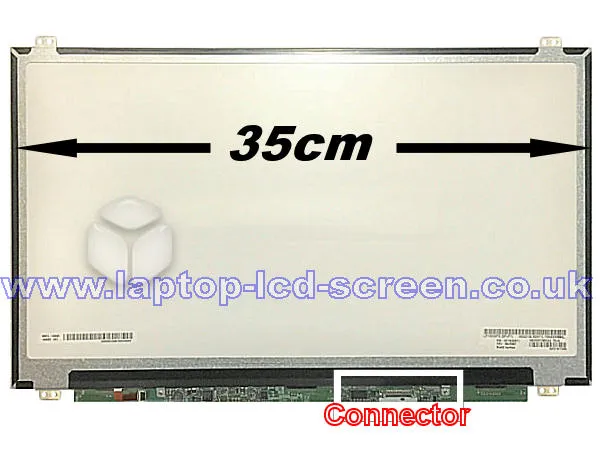

You are viewing a Auo B156han02.1 H/W:1A Class I and fully compatible (with 5D10M53949, and other models) LCD part. We can supply this LCD with a MATTE (Anti-Glare) finish. Please check that your original screen has a glass area of 15.6" inches diagonally (not including the frame) and has a maximum resolution of 1920X1080 (or is known as FULL HD resolution or 1080p). This screen's backlight is powered by LED backlight technology. The data connector on this screen has 30 pins and is an eDP displayport, which can be found at the bottom right side of the screen - on the back of the LCD. This is a genuine IPS (AAS/ADS/AHVA or FFS/UWVA/PLS) screen offering ultra wide viewing angles. AUO 15.6 inch screens can sometimes come touch screen enabled, this product is a non-touchscreen model. We are supplying the raw LCD panel only without the front touch glass (digitizer). Auo B156han02.1 H/W:1A screen replacement cost is just £46.74 plus shipping.
Au Optronics Auo B156han02.1 Hw1a 15.6 No DIGITIZER installation guide (video). - Opens in external window
You need to replace the broken screen. Watch our video on How to replace a Auo B156han02.1 H/W:1A LCD screen part.
You might need this screen replacement. Check with an external monitor. Here are the instructions to check the problem related to white screen on laptop.
