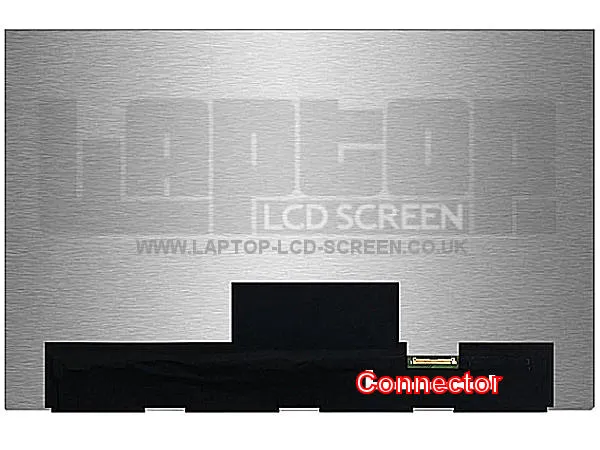

Ibm Lenovo Legion Pro 5 16iax10 83f3 Wqxga (oled) (165hz) Replacement Screen Rear-view

40 Pins - 25mm wide connector

4.8 ★★★★★ 411 Google reviews
4.9 ★★★★★ 2,892 Trustpilot™ reviews

LCD Mounting Strips Stretch Release Tape

£4.99+VAT (What's this?) Stretch Adhesive Tape is a special LCD tape that can be removed easily (unlike double-sided tape), by pulling tabs at the end of the tape.

LCD Toolkit Toolkitimage

£8.33+VAT (What's this?) Spuder, Knife, Pry-tool, Tweezers & Screwdriver. Everything you need to make installation easier and safer.

Lenovo LEGION PRO 5 16IAX10 83F3 Series WQXGA OLED 165hz Replacement Laptop Screen

4.8 ★★★★★ 411 Google reviews 4.9 ★★★★★ 2,892 Trustpilot™ reviews

SKU

3000461

Condition

NEW, Class 1 (ISO-9241)

Size

16.0"

Resolution

2560X1600 (WQXGA)

Backlight

OLED

Finish

VibrantView/Infinity™ / Glossy (Glare)

Connector

40 PIN EDP (bottom right)

Connector Pitch

0.5mm (Large)

Frame Rate

165hz Refresh

Screen Bezel

Narrow Border/Narrow Bezel

Colours

High Gamut 100% sRGB

NTSC

72%

Have you got the right product?

This Legion computer has other screen types fitted. You must make sure you purchase the correct one which uses the same resolution and connector type.

Can I Upgrade My Screen?

Prices shown include UK VAT

Variations of Legion 5 Pro 16 Inch screens

Type

Backlight

Price

Trade

LENOVO LEGION PRO 5 16IAX10 83F3 SERIES 16.0 WQXGA 240HZ
Bottom right connector 40 pins (0.5mm)

16.0"
WQXGA
2560x1600

LED

£73.14

£68.01

LENOVO LEGION PRO 5 16IAX10 83F3 SERIES WQXGA OLED 165HZ Screen (16" WQXGA)

This GLOSS 165hz OLED 100%sRGB (high gamut) replacement screen is fully compatible with the LENOVO LEGION PRO 5 16IAX10 83F3 SERIES 16" WQXGA OLED 165HZ laptop that has a 2560X1600 display resolution.

For displays with a 40 pin EDP 0.5mm pitch connector. Pick up this brand new latest available direct manufacturer original OLED panel for just £264.00, with fast UK and EU shipping and a free extended 2-year warranty.

Warning! Your device takes different screen types that are not interchangeable, you must choose the correct type.

Part Compatibility With (ATNA60HS01-HW0, 5D11S77254, and other models)

Should you buy this product?

If you have carefully checked that the specifications on this page match your laptop screen model, you are good to go. If you are still unsure, we advise removing your current screen and ordering by screen model number. If your old Legion 5 Pro 16 Inch screen is cracked, showing lines, flickering, completely black or white, it cannot be economically repaired and must be replaced with this compatible replacement screen.
