Ibm Lenovo Thinkbook 16 G7 Arp (wux) Replacement Screen Rear-view

30 Pins - 19mm wide connector

4.8 ★★★★★ 411 Google reviews
4.9 ★★★★★ 2,892 Trustpilot™ reviews

LCD Mounting Strips Stretch Release Tape

£4.99+VAT (What's this?) Stretch Adhesive Tape is a special LCD tape that can be removed easily (unlike double-sided tape), by pulling tabs at the end of the tape.

LCD Toolkit Toolkitimage

£8.33+VAT (What's this?) Spuder, Knife, Pry-tool, Tweezers & Screwdriver. Everything you need to make installation easier and safer.

Lenovo THINKBOOK 16 G7 ARP WUXGA Replacement Laptop Screen ( Not Touch )

4.8 ★★★★★ 411 Google reviews 4.9 ★★★★★ 2,892 Trustpilot™ reviews

SKU

2573762

Condition

NEW, Class 1 (ISO-9241)

Size

16.0"

Resolution

1920X1200 (WUXGA) 1080p

Backlight

LED

Touch Screen

Touch Glass

Not included

Finish

Matte (Anti-Glare)

Connector

30 PIN EDP (bottom right)

Connector Pitch

0.5mm (Large)

Display Mode

IPS

LCD Model

Part code sent varies

Screen Gamut

Varies

NITs & cd/m2

Varies

Screen Bezel

Narrow Border/Narrow Bezel

Have you got the right product?

This ThinkBook computer has other screen types fitted. You must make sure you purchase the correct one which uses the same resolution and connector type.

Can I Upgrade My Screen?

Prices shown include UK VAT

Variations of ThinkBook 16 G7 screens

Type

Backlight

Price

Trade

LENOVO THINKBOOK 16 G7 ARP 16.0 WUXGA TOUCH
Bottom right connector 40 pins (0.4mm) Touch

16.0"
WUXGA
1920X1200

LED

£89.94

£83.64

LENOVO THINKBOOK 16 G7 ARP 21MW SERIES 16.0 WUXGA ~~TOUCH~~
Matte. Bottom right connector 30 pins (0.5mm)

16.0"
WUXGA
1920X1200

LED

£51.54

£47.92

LENOVO THINKBOOK 16 G7 ARP 21MW SERIES 16.0 WUXGA TOUCH
Bottom right connector 40 pins (0.4mm) Touch

16.0"
WUXGA
1920X1200

LED

£89.94

£83.64

LENOVO THINKBOOK 16 G7 ARP 21MWCTO1WW 16.0 WUXGA ~~TOUCH~~
Matte. Bottom right connector 30 pins (0.5mm)

16.0"
WUXGA
1920X1200

LED

£51.54

£47.92

LENOVO THINKBOOK 16 G7 ARP 21MWCTO1WWCA1 16.0 WUXGA ~~TOUCH~~
Matte. Bottom right connector 30 pins (0.5mm)

16.0"
WUXGA
1920X1200

LED

£51.54

£47.92

LENOVO THINKBOOK 16 G7 ARP 21MWCTO1WWCA2 16.0 WUXGA ~~TOUCH~~
Matte. Bottom right connector 30 pins (0.5mm)

16.0"
WUXGA
1920X1200

LED

£51.54

£47.92

LENOVO THINKBOOK 16 G7 ARP 21MWCTO1WW 16.0 WUXGA TOUCH
Bottom right connector 40 pins (0.4mm) Touch

16.0"
WUXGA
1920X1200

LED

£89.94

£83.64

LENOVO THINKBOOK 16 G7 ARP 21MWCTO1WWCA1 16.0 WUXGA TOUCH
Bottom right connector 40 pins (0.4mm) Touch

16.0"
WUXGA
1920X1200

LED

£89.94

£83.64

LENOVO THINKBOOK 16 G7 ARP 21MWCTO1WWCA2 16.0 WUXGA TOUCH
Bottom right connector 40 pins (0.4mm) Touch

16.0"
WUXGA
1920X1200

LED

£89.94

£83.64

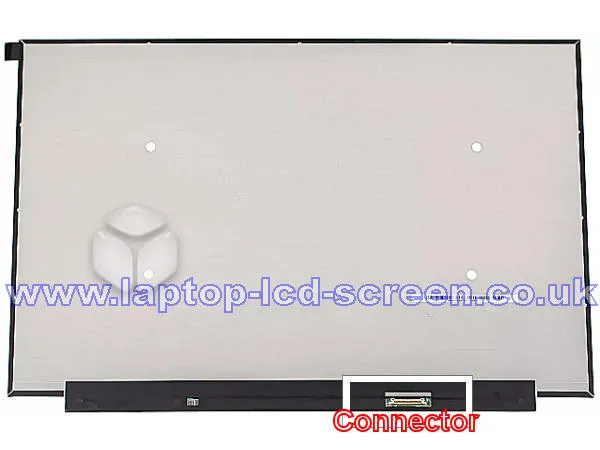

LENOVO THINKBOOK 16 G7 ARP WUXGA Screen (16" WUXGA)

This Matte IPS LED replacement LCD screen is fully compatible with the LENOVO THINKBOOK 16 G7 ARP 16" WUXGA laptop that has a 1920X1200 display resolution. This product is not for touchscreen devices, this raw LCD panel does not include any touchscreen parts.

For displays with a 30 pin EDP 0.5mm pitch connector. Pick up this brand new latest available panel for just £51.54, with fast UK and EU shipping and a free extended 2-year warranty.

Warning! Your device takes different screen types that are not interchangeable, you must choose the correct type.

Part Compatibility With (N160JCE-ELL-REV.C1, 5D11K06176, NV160WUM-N48-V8.0, 5D11K06180, B160UAN04.2-HW0A, 5D11K06193, MNG007QS4-2, 5D11M52520, 5D11M52522, 5D11M52517, and other models)

Should you buy this product?

If you have carefully checked that the specifications on this page match your laptop screen model, you are good to go. If you are still unsure, we advise removing your current screen and ordering by screen model number. If your old ThinkBook 16 G7 screen is cracked, showing lines, flickering, completely black or white, it cannot be economically repaired and must be replaced with this compatible replacement screen.

Part code in stock: Varies, We always send the latest available LCD model.
