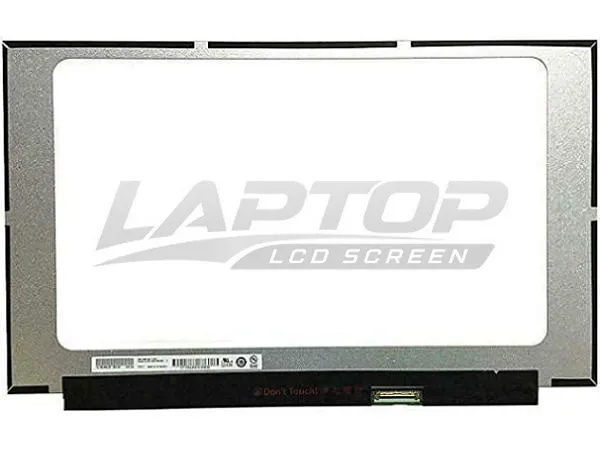

AUO B156XTK02.1 FOR HP Compatible Replacement LCD Screen

4.8 ★★★★★ 411 Google reviews 4.9 ★★★★★ 2,892 Trustpilot™ reviews

SKU

3550493

Condition

NEW, Class 1 (ISO-9241)

Size

15.6"

Resolution

1366X768 (HD) 768p

Backlight

LED

Touch Screen

YES

Touch Type

OnCELL

Finish

Glossy (Glare)

Connector

40 PIN EDP (bottom right)

Connector Pitch

0.5mm (Large)

Display Mode

TN (Twisted Nematic)

Warning

HP Laptops Only

Have you got the right product?

This AUO computer has other screen types fitted. You must make sure you purchase the correct one which uses the same resolution and connector type.

Can I Upgrade My Screen?

Prices shown include UK VAT

Variations of AUO 15.6 inch LCD screens

Type

Backlight

Price

Trade

AUO B156XTK02.1 15.6 FOR LENOVO
Gloss. Bottom right connector 40 pins (0.4mm) Touch

15.6"
HD
1366X768

LED

£77.94

£72.48

AUO B156XTK02.1 FOR HP Compatible Replacement Screen (15.6" HD)

About this product

This product is a GLOSS TN LED On-Cell Touch replacement LCD panel compatible with AU OPTRONICS B156XTK02.1 FOR HP.

Matching 15.6" active display size, 1366X768 resolution and 40 pin EDP connector type with a 0.5mm pitch, and designed as a compatible replacement where the stated specifications match. Ideal for repairs or refurbishments and costing only £59.94. In stock with fast UK and EU shipping and 2 year warranty.

Warning! This LCD screen has been manufacturered in different versions that are not interchangeable, you must choose the correct type.

Should you buy this product?

If you have carefully checked that the specifications on this page match your laptop screen model, you are good to go. If you are still unsure, we advise removing your current screen and ordering by screen model number. If your old AUO 15.6 inch LCD screen is cracked, showing lines, flickering, completely black or white, it cannot be economically repaired and must be replaced with this compatible replacement screen.

Warning: HP Laptops Only.
