Samsung Ativ Book 4 NP470RSE Screen Replacement

Replacing a Samsung Ativ Book 4 NP470RSE screen

There's no need to worry when you break your Samsung Ativ Book 4 NP470RSE screen. Laptop screen replacement is, in fact, surprisingly simple. Below, you'll find easy to follow instructions that will help guide yu through the entire screen replacement process.

How to replace a Samsung Ativ Book 4 NP470RSE screen

Step one

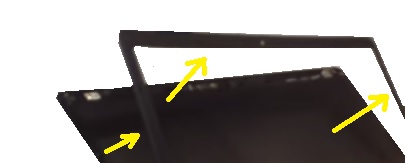

Turn off your laptop, remve the battery and, unplug the machine from the mains power. Next, unplug any, (and all,) peripheral devices, (such as memory sticks and/or speakers.) Then, use your fingers r a flat edged implement, (a guitar plectrum, debit card or razor,) to prse the front bezel away from the rest of the screen casing. Work your way around each edge of the broken screen, easing the front bezel away from the machine.

Step two

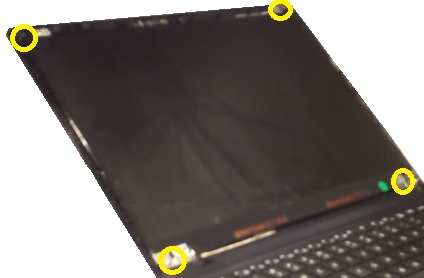

Remove the screws, (four in total,) used to hold the broken screen in place.

Step three

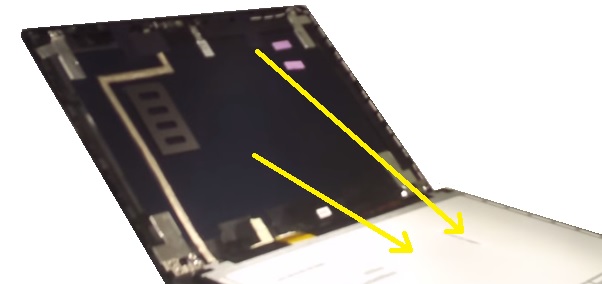

Carefully take hold of the top of the broken screen and, gently pull it towards you, laying it to rest, face down, on the keyboard in front.

Step four

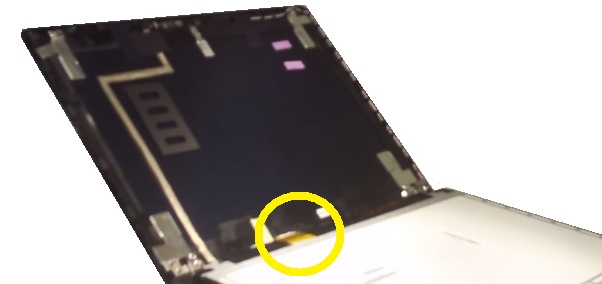

Disconnect the thick cable attached to the back of the broken screen.

Step five

Lift the broken screen free from the machine. To fit your replacement Samsung Ativ Book 4 NP470RSE screen, simply follow the above instructions in reverse order.

Replacement Samsung Ativ Book 4 NP470RSE screens



*Disclaimer: As with any repair you choose to undertake, Laptop-LCD-Screen.co.uk cannot be held responsible for any damage caused to your device during the replacement/repair process. If you feel anxious or unsure about completing this repair yourself, it is best to err on the side of caution.
