No-Tabs Laptop Screen Installation Guide
How to Use Stretch Release Tape to Fit and Remove a No-Tabs Laptop Screen
Modern narrow-border laptop screens often have no side mounting brackets or screw tabs. Instead, two stretch-release adhesive strips hold the LCD securely inside the display lid. The important part is not simply sticking the screen down: the release tabs must be left accessible at the correct edge of the panel so the screen can be removed safely in the future.
Written by: Nick Christou, Laptop Screen Technical Specialist
Originally published: 22 June 2023
Technical review: 9 September 2026
Experience: Laptop screen specialists since 2006
Quick answer
How is stretch-release tape used on a laptop screen?
↕
Fit one strip vertically behind the left side of the screen and one behind the right, while leaving the pull tabs accessible beyond the panel edge.
Depending on the display-lid design, the tabs may need to protrude from the bottom of the LCD or from the top. When the panel needs removing later, support the screen and pull each tab slowly in the direction of the strip, keeping the tape low and as parallel to the lid as possible. The strip stretches, becomes thinner and progressively releases its adhesive bond from behind the panel.
Before applying tape directly to the lid, inspect the back of the original LCD.
Some laptops use separate metal mounting brackets that are bonded to the old screen and are intended to be transferred to the replacement panel.
!
The pull tabs must remain accessible
Do not bury both ends of the strip completely behind the LCD. If the release tab is inaccessible, the main advantage of stretch-release adhesive is lost and future removal can become much harder.

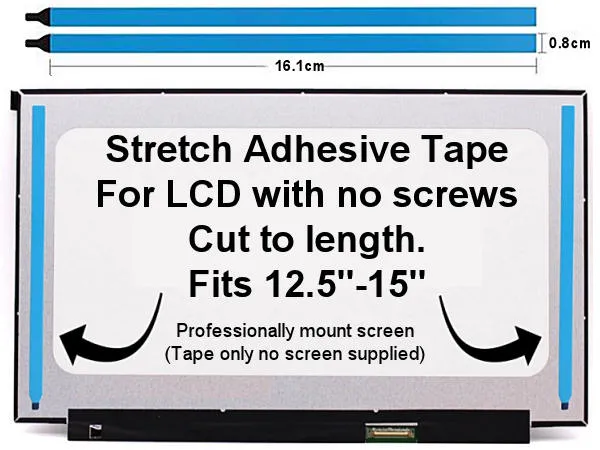

Stretch-release LCD mounting tape is supplied as narrow adhesive strips. The adhesive section sits behind the panel; the release end must be positioned where it can be reached after the bezel or display trim is removed.
The short explanation
What is stretch-release tape?
Stretch-release tape is a strong double-sided adhesive designed to hold a component in position during normal use but release when the strip is stretched lengthways. Instead of levering the LCD away from a permanent adhesive pad, you pull the release end so the tape elongates underneath the screen and progressively loses its grip.
This makes it particularly useful on modern no-tabs or narrow-border laptop screens where the LCD is retained against the rear lid without conventional metal side brackets and screws.
The tape is designed to make later service easier, but removal is not guaranteed to be completely effortless. Old adhesive can become brittle, a release strip can snap, and incorrect pulling technique can trap part of the strip behind the display.
For more background on this type of screen construction, read
Narrow-Bezel and No-Tabs Laptop Screens Explained
.
Check the old screen before choosing the mounting method
Some laptop screens have removable mounting brackets that must be transferred
Not every replacement screen that arrives without permanent mounting tabs is meant to be stuck directly into the rear lid. On some laptops, the manufacturer fits separate thin metal mounting brackets or rails to the back of the original LCD. Those brackets form part of the laptop's mounting system and are reused when the screen itself is replaced.
In our workshop we see this arrangement particularly often on ASUS and Dell laptops, although other manufacturers also use removable bracket systems on some models.
i
The quickest check is to inspect the rear of the original LCD
Look closely around the left and right sides and the corners of the old screen. If you can see separate metal rails, screw ears or corner brackets that appear to be stuck onto the panel rather than manufactured as part of it, they may need to be removed and transferred to the new LCD.
Example of transferable laptop-screen brackets:
the thin metal rails and screw ears are separate from the LCD itself. They are bonded around the rear/edges of the original panel and can be carefully transferred to the replacement screen when the laptop's design requires them.
Brackets fixed with stretch-release adhesive
Some removable rails use stretch-release adhesive. Locate the release end and pull it slowly, low and approximately parallel to the panel so the strip elongates and releases instead of peeling the bracket away by force.
Brackets fixed with ordinary double-sided adhesive
Other brackets are held with conventional double-sided tape. These may need gentle, controlled warming to soften the adhesive before separation. Keep the heat moving and work gradually rather than heating one spot heavily.
The brackets can be surprisingly flimsy
Long thin rails can twist or bend very easily once one end starts to lift. Support the bracket along its length and release the adhesive progressively instead of pulling hard on one corner.
A replacement arriving without brackets may still be correct
If the original laptop uses transferable brackets, the new LCD may correctly be supplied as a bare no-tabs panel. The original brackets are then moved across and positioned in the same places.
!
Do not force a stuck mounting bracket
If a bracket will not lift easily, stop and identify how it is bonded. Stretch-release tape should be released by pulling the strip; ordinary double-sided adhesive may need controlled heat and a thin plastic separation tool. Excess force can bend a reusable bracket, and a distorted bracket can stop the new screen sitting square or prevent the bezel and screw holes lining up correctly.
How to transfer removable LCD mounting brackets
Photograph the bracket positions before removal
Take clear photographs of both sides of the original LCD and note the exact position and orientation of each screw ear, corner piece and rail. Small alignment differences can affect how the replacement sits in the lid.
Identify the adhesive before pulling
Look for a stretch-release tab or an adhesive strip that continues beyond the bracket. If there is no release tab and the bracket is firmly bonded, it may be conventional double-sided adhesive instead.
Release stretch tape by pulling it lengthways
Support the bracket and pull the release strip slowly in line with the adhesive, keeping it close to the rear of the panel. Do not lift the bracket sharply while the tape is still attached.
Warm conventional double-sided adhesive when necessary
If the bracket is held with ordinary double-sided tape, use a heat gun carefully to warm the bonded area gradually while keeping the heat moving. Apply only enough heat to soften the adhesive, then work a thin plastic tool under the bracket a little at a time. Avoid concentrating heat on the centre of the LCD, connector, cables or nearby plastics.
Support the bracket along its full length
Do not use one screw ear as a lever. Long brackets can kink or twist. Release the adhesive progressively along the rail and keep the metal as flat as possible.
Clean and transfer the bracket to the new LCD
Remove the old adhesive from the reusable bracket, apply fresh suitable adhesive and align it to the replacement using the original photographs as a reference. Transfer one side at a time where practical so the untouched side remains an alignment guide.
Dry-fit the screen before final assembly
Place the bracketed replacement into the lid and confirm that the screw holes, bezel, hinge area, connector position and panel edges all line up correctly before completing the repair.
The important distinction is that stretch-release tape can be used in two different places: directly between a no-tabs LCD and the rear lid, or as the adhesive that secures removable mounting brackets to the LCD. Always reproduce the mounting method used by the original laptop rather than assuming every bare no-tabs replacement should be taped straight into the lid.
Identify the mounting system first
Which laptop screens use stretch-release adhesive?
No-tabs LCD panels
Modern slim displays without permanent mounting ears may be fixed directly to the lid with stretch-release adhesive, or may use separate removable brackets transferred from the original LCD.
Narrow-border displays
Very thin bezels leave less room for traditional screw mounts, so manufacturers often use two vertical adhesive strips instead.
Some OEM lid assemblies
HP, Lenovo and other manufacturers use elastic/stretch-release strips on selected laptop generations. The exact position varies with the lid design.
Not every adhesive-mounted screen
Some bonded touch assemblies and glass-front displays use perimeter adhesive or other mounting methods. Do not assume stretch-release tape is correct for every lid.
i
Copy the original mounting layout where possible
Before removing the old panel, inspect the entire rear of the LCD. Note where factory adhesive strips run, where pull tabs finish, and whether separate metal brackets or rails are bonded to the panel. Photograph the original layout before removing anything.
Critical installation detail
Should the stretch-release tabs be at the top or bottom of the screen?
There is no single correct answer for every laptop. The correct edge is the one the lid design provides for future access to the release tabs.
Top-release configuration
↑
↑
Leave the release ends protruding above the LCD when the top edge is the accessible service point once the bezel or trim is removed.
Bottom-release configuration
↓
↓
Leave the release ends protruding below the LCD when the lower corners are intended to provide access to the strips.
The visible tab only needs to remain accessible; it should not interfere with the bezel, hinge cover, webcam area, display cable or any antenna wiring. Before permanently seating the new LCD, temporarily position it in the lid and confirm that the planned tab location can still be reached later.
!
Do not blindly copy “pull downwards” instructions from another laptop
Some laptops release from the bottom and others from another edge. Follow the original lid construction and pull in the direction the adhesive strip runs. What matters during removal is a slow, shallow pull along the strip — not a universal up or down direction.
Before sticking the new LCD down
Prepare the lid and test the screen first
Remove the old adhesive completely
Do not place a fresh stretch strip over fragments of old tape. The LCD needs a flat, clean mounting surface.
Inspect the rear lid
Check for bent metal, cracked plastic, loose spacers, damaged foam or anything that could put pressure on the new screen.
Clean the bonding areas
Use a suitable electronics-safe cleaning method for the lid material and allow the surface to dry fully. Avoid leaving grease, dust or adhesive remover on the bonding path.
Test the replacement before final bonding
Connect and safely test the new screen while it is supported before committing it to the adhesive. Check image, brightness, refresh rate and touch where applicable.
Our complete
How to Replace a Laptop Screen
guide covers safe battery isolation, display-cable handling and pre-assembly testing.
Installation procedure
How to fit a laptop screen using stretch-release tape
Disconnect all power before working on the screen
Shut the laptop down, unplug the charger and disconnect or isolate the internal battery according to the laptop's service procedure before touching the eDP or LVDS display connector.
Inspect the back of the original LCD for transferable brackets
Before deciding that the new panel should be taped directly into the lid, check whether the original screen has separate thin metal rails, corner brackets or screw ears bonded to its rear. If it does, transfer those brackets first using the method described above.
Study the original tape position
If the panel is directly adhesive-mounted, note how far the original strips sit from the left and right edges, where the pull tabs finish and whether they are accessed at the top or bottom of the lid.
Dry-fit the replacement LCD
Place the new screen in the lid without exposing the fresh adhesive. Check that the panel is centred, the display cable reaches naturally and the bezel can close without pressing on the lower PCB or glass.
Choose the pull-tab edge before applying the tape
Decide whether the release ends need to protrude from the top or bottom. Confirm that the tabs will remain reachable once the bezel is removed in a future repair.
Cut only to the required length without removing the release end
If the strip is longer than the panel requires, shorten it from the non-release end so the pull tab remains intact. Do not cut through the tab that will be needed for future removal.
Apply the strips vertically behind the panel
Position one strip towards the left side and one towards the right, following the original mounting path. Keep the adhesive away from the display cable, webcam wiring, antenna leads, connector area and any lid features that must remain free.
Leave enough tab protruding to grip later
The release end should extend beyond the chosen panel edge far enough to be found and gripped with fingers or fine tweezers after the bezel is removed, without being trapped by the trim.
Expose the second adhesive face and lower the LCD into position
Align the screen carefully before pressing it down. Stretch-release adhesive holds strongly during normal use, so avoid sticking one corner first and then trying to slide the panel sideways into alignment.
Press the panel evenly into the intended mounting areas
Apply gentle, even pressure over the supported edges rather than pressing hard on the centre of the LCD. The goal is good adhesive contact without flexing the display glass.
Check the tabs before refitting the bezel
Confirm both release tabs are still accessible and have not folded behind the LCD. Then route the display cable correctly, refit any retention tape and close the bezel/trim without trapping the tabs or wires.
✓
The installation is only complete when future removal has been planned
A neatly hidden release tab is useless if it cannot be reached later. Think of the pull tabs as part of the service design, not excess tape that should be tucked behind the screen.
Future screen removal
How to remove a laptop screen fitted with stretch-release tape
Disconnect the charger and battery
Remove all power before opening the lid assembly or handling the display connector.
Remove enough bezel or trim to expose both pull tabs
Identify the actual adhesive release ends. Do not mistake a black display cable, webcam wire or antenna lead for a tape tab.
Support the LCD before releasing the adhesive
Keep one hand ready to support the panel. Once both strips have released, the screen may no longer be retained by the lid.
Grip the first pull tab
Fingers are ideal when there is enough tab exposed; fine tweezers can help start a short or folded release end. Avoid cutting into the strip.
Pull slowly along the length of the strip
Keep the stretched tape low and as parallel to the lid as practical. Pull steadily rather than jerking it. The adhesive needs time to elongate and release from underneath the LCD.
Re-grip closer to the lid as the tape becomes long
The strip can stretch considerably. If necessary, stop while maintaining control, grip closer to the release point and continue the same shallow pulling motion.
Repeat on the second strip
Keep supporting the panel. Do not lever the screen forwards just because one side is loose; the remaining strip may still be strongly bonded.
Lift the LCD only after the adhesive has released
Once both strips are free, gently lift or tilt the panel according to the lid design, taking care not to strain the display cable.
×
Do not pull the release strip towards yourself
Stretch-release adhesive works best when stretched along the surface. Pulling sharply outwards or upwards increases the chance of snapping the strip and can place unnecessary force on the LCD and lid.
Lenovo service documentation for laptops that use elastic display adhesive similarly instructs technicians to grasp the tape ends and pull each strip out slowly until it has fully released. Independent HP display-panel repair procedures also emphasise a slow pull kept as parallel to the display as possible.
When removal does not go perfectly
What should you do if the stretch-release strip snaps?
Stop pulling the panel forwards. A broken strip normally means part of the adhesive is still bonded behind the LCD, so forcing the screen can bend the panel or damage the lid.
If part of the tab is still reachable
Grip the remaining end as close to the lid as possible and resume a slow, shallow pull in line with the strip.
If the strip disappears behind the panel
Use the laptop's model-specific service method. This may involve controlled separation with a plastic tool and, on some designs, carefully managed heat.
Do not drive a metal blade behind the LCD
There may be cables, antenna leads, the webcam harness or a thin LCD back surface directly behind the point you are probing.
Replace the strips after removal
Stretch-release adhesive is a consumable fixing. Once a strip has been stretched out and removed, fit new strips rather than trying to reuse it.
!
Heat is a recovery technique, not the normal removal method
Properly accessible pull tabs should normally allow the strip to release by stretching. Only use controlled heat where the strip has broken and the specific lid construction allows it; protect the webcam, plastics, cables and display electronics from overheating.
Why ordinary tape is not the same
Can I use normal double-sided tape instead?
Ordinary double-sided adhesive may hold a screen in place, but it does not provide the same controlled stretch-release removal method. If the LCD needs replacing again, conventional foam tape or aggressive adhesive pads may have to be cut or levered apart from behind the panel.
| Mounting method |
Holds the screen? |
Future removal |
Best use |
| Correct stretch-release LCD tape |
Yes, when fitted correctly. |
Designed to release by stretching the accessible tab. |
No-tabs screens whose original lid design uses this mounting method. |
| Generic permanent double-sided tape |
Often. |
May require cutting, levering or adhesive-softening later. |
Not the preferred substitute when the lid was designed for stretch-release strips. |
| Glue / liquid adhesive |
Can. |
Potentially difficult and unpredictable. |
Generally inappropriate for a serviceable laptop LCD unless specifically required by the OEM design. |
| No adhesive at all |
Not reliably on an adhesive-retained lid. |
Easy to remove, but the screen may move or sit incorrectly. |
Only where the lid uses another proper retention system. |
Warranty implications depend on the laptop manufacturer, screen supplier and the cause of any damage. The more practical reason to use the correct tape is that it reproduces the intended mounting and service method rather than permanently bonding the panel into the lid.
Common fitting errors
Stretch-release tape mistakes to avoid
| Mistake |
Why it causes trouble |
Better approach |
| Hiding the pull tabs behind the LCD |
There is nothing to grip during the next repair. |
Leave the tabs accessible at the lid's intended top or bottom service edge. |
| Cutting off the release tab |
The strip becomes difficult to stretch out later. |
Shorten from the non-tab end when trimming is required. |
| Pulling outwards from the lid |
Raises stress and makes strip breakage more likely. |
Pull slowly, low and approximately parallel with the mounting surface. |
| Pulling quickly |
The adhesive has less time to elongate and release progressively. |
Use steady force and allow the strip to stretch. |
| Letting the LCD fall forwards |
Can damage the display cable, connector or new panel. |
Support the panel before releasing either strip. |
| Sticking over old adhesive |
Produces uneven contact and can alter the panel's position. |
Remove the old tape and prepare a flat clean surface. |
| Skipping the screen test |
A faulty or incompatible panel then has to be removed from fresh adhesive. |
Test image and features before final bonding. |
| Reusing stretched adhesive |
The strip has already been elongated and its original mounting properties are lost. |
Use fresh strips for reassembly. |
Replacement adhesive strips
Stretch-release LCD mounting tape for no-tabs screens
Our mounting strips are supplied as a pair for the left and right sides of a no-tabs display and can be shortened to suit the screen where required. Preserve the pull-tab end when trimming.
Trade and quantity pricing is shown on the individual product pages.
Technical references
Why the slow, shallow pull matters
Replacing a no-tabs laptop LCD?
Match the screen first — then mount it the way the lid was designed
Stretch-release tape solves the mounting problem, not the compatibility problem. Confirm the panel model, connector, resolution, refresh rate, thickness and no-tabs construction before sticking the replacement into the lid.
Frequently asked questions
Stretch-release laptop screen tape FAQs
Where should stretch-release tape go on a laptop screen?
It normally runs vertically behind the left and right sides of a no-tabs LCD, following the original factory mounting layout. Keep it away from the display cable, webcam wiring, antenna leads and connector area.
Should the pull tabs be at the top or bottom?
Either can be correct. Position the release tabs at the edge intended to remain accessible when the bezel or trim is removed. Some lids provide access at the bottom and others at the top.
How much of the pull tab should stick out?
Enough to identify and grip safely with fingers or fine tweezers during a future repair, while remaining hidden and untrapped when the bezel is fitted.
How do you remove stretch-release tape without snapping it?
Support the screen, grip the release end and pull slowly in the direction of the strip. Keep the tape low and approximately parallel to the lid so it stretches underneath the LCD instead of being peeled sharply away from the surface.
What happens if the stretch-release tab snaps?
Stop forcing the screen. If a remaining section is accessible, re-grip it close to the lid and continue slowly. If the strip is trapped behind the panel, use the model-specific service method for separating the remaining adhesive rather than levering the LCD out.
Can stretch-release tape be reused?
No. Once it has been stretched out and removed, replace it with fresh tape for reassembly.
Can I cut stretch-release laptop screen tape to length?
Yes, where the strip design allows it. Preserve the release-tab end and shorten from the opposite end so the tab remains available for future removal.
Can I use normal double-sided tape instead?
It may physically hold a panel, but it does not provide the same controlled stretch-release service method. Use the mounting system intended for the lid whenever possible.
Do I need stretch-release tape on every no-tabs screen?
Not automatically. Check how the original screen was retained. Some no-tabs panels use stretch-release strips, while other assemblies use different adhesive or mounting systems.
Should I test the new screen before sticking it down?
Yes. Test the replacement safely while supported before final bonding so compatibility, image quality, brightness, refresh rate and touch can be checked without immediately having to remove fresh adhesive.
Should I disconnect the battery before fitting or removing the screen?
Yes. Disconnect the charger and isolate the internal battery before connecting, disconnecting or reseating the internal display cable.
Why should the screen be supported while pulling the strips?
Once the second strip releases, there may be nothing retaining the LCD to the lid. Supporting it prevents the panel falling forwards and pulling on the display cable.
My old screen has metal brackets but the replacement does not. Is the new screen wrong?
Not necessarily. Some laptops use removable mounting brackets that are bonded to the original LCD and are intended to be transferred to the replacement. Inspect the back of the old panel for separate metal rails or corner brackets before deciding the replacement is missing parts.
How do I remove brackets that are stuck to the old laptop screen?
First identify the adhesive. If the bracket uses stretch-release tape, pull the release strip slowly and close to the panel. If it uses ordinary double-sided adhesive, controlled warming with a heat gun may be needed to soften the bond. Support the thin metal bracket along its length and separate it gradually with a plastic tool rather than forcing or twisting it.
Which laptop brands use transferable screen brackets?
We encounter the arrangement frequently on ASUS and Dell laptops, but other manufacturers also use detachable bracket systems on selected models. The reliable check is the construction of the original LCD, not the brand name alone.
Related installation and compatibility guides
