CCFL vs LED Laptop Screens: How to Identify Older Backlight Types
Older laptops may use either a fluorescent CCFL backlight with a separate inverter or a newer LED backlight built into the panel electronics. These systems are not normally interchangeable, so identifying the original type is essential before ordering.
CCFL screen
Usually has one or two lamp leads and a separate inverter below the panel
LED screen
Normally has no external CCFL inverter or white fluorescent-lamp plug
Safest buying rule
Match the original panel model, backlight system, cable and fittings
The quick answer
CCFL and LED describe two different ways of illuminating an LCD panel.
A CCFL screen uses a small fluorescent lamp powered by a separate high-voltage inverter. An LED-backlit screen uses light-emitting diodes and does not normally use that separate CCFL inverter.
This guide was originally written when both screen types were commonly fitted to laptops. CCFL panels are now mainly encountered when repairing older notebooks, netbooks, rugged laptops and legacy equipment, but the identification advice remains useful because the wrong backlight type will usually not connect or operate correctly.
!
Electrical safety
CCFL inverter boards can generate a high voltage. Disconnect the charger and battery before dismantling the display, and never touch or test an exposed inverter while the laptop is powered.
What do LCD, CCFL and LED mean?
Display technology
LCD
LCD means Liquid Crystal Display. The liquid-crystal layer controls light at pixel level to create the image. Both CCFL-backlit and LED-backlit laptop panels can be LCD screens.
Older backlight
CCFL
CCFL means Cold Cathode Fluorescent Lamp. A miniature fluorescent tube illuminates the LCD and is normally powered by a separate inverter board.
Newer backlight
LED / WLED / OLED
LED means Light Emitting Diode. White LEDs illuminate the LCD and are normally powered and controlled through the panel connection rather than a separate CCFL inverter.
LCD creates the image. CCFL or LED describes the backlight used to make that image visible.
CCFL vs LED laptop screens at a glance
| Feature |
CCFL-backlit LCD |
LED-backlit LCD |
| Light source |
One or two miniature fluorescent lamps |
White light-emitting diodes |
| Separate inverter |
Normally required |
No separate CCFL inverter |
| Visible lamp leads |
Usually one or two wires ending in small white plugs |
Normally no white fluorescent-lamp plugs |
| Typical interface era |
Commonly older LVDS systems |
Found with later LVDS and modern eDP systems |
| Panel thickness |
Often thicker |
Usually thinner and lighter |
| Power use |
Generally higher |
Generally lower |
| Age-related symptoms |
Pink tint, flickering, slow start or dim backlight can occur |
Backlight strip, driver or panel-electronics faults can occur |
| Directly interchangeable? |
Normally no. Match the original technology, cable, connector, mounting and power arrangement. |
How a CCFL laptop screen works
A CCFL panel contains a very small fluorescent tube along one edge of the LCD. Some larger screens use two lamps. The lamp requires a higher operating voltage than the laptop battery supplies directly, so the laptop uses a separate inverter board.
1
Laptop power
Low-voltage DC power is supplied by the laptop.
→
2
CCFL inverter
The inverter converts the power for the fluorescent lamp.
→
3
CCFL lamp
The fluorescent tube illuminates the LCD from behind.
→
4
Visible image
The LCD controls the light to form the picture.
The inverter is usually a long, narrow circuit board fitted below the screen behind the bezel. One side connects to the laptop; the other side accepts the small white plug from the screen’s fluorescent lamp.
A typical separate power inverter used with an older CCFL-backlit laptop screen.
Do not confuse a flat flexible cable with a CCFL lamp lead

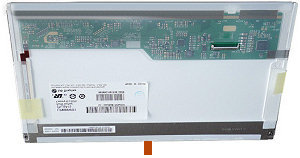

Older screen listings sometimes call the orange plastic tail on an LED panel a “filament cable”. A more general modern term is a flat flexible cable or panel flex.
This cable is part of the screen electronics. It does not indicate that the panel uses a CCFL inverter. A true CCFL lamp connection normally consists of insulated wires ending in a small white plug.

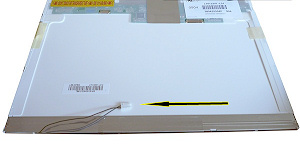

CCFL lamp lead
Thin insulated wires with a small white plug, connected to a separate inverter.
LED panel flex
Flat orange or amber plastic cable attached to the panel electronics; not a CCFL inverter lead.
How to check which screen type is fitted
On many older laptops, removing the front bezel is enough to see whether an inverter is fitted below the screen. Complete panel removal may still be required to identify the exact model number and connector.
-
Shut the laptop down completely.
Disconnect the charger and remove or isolate the battery where possible.
-
Check the service manual.
Use the manufacturer’s instructions for removing the bezel and display assembly.
-
Look below the panel.
A long, narrow board with a lamp plug normally indicates a CCFL inverter system.
-
Count any CCFL lamp plugs.
Some large panels use two lamps and require the correct dual-output arrangement.
-
Read the complete panel label.
Record the screen model, revision and any hardware version printed on the rear label.
-
Photograph the cable and fittings.
Connector position, brackets and cable routing are valuable compatibility evidence.
!
Avoid knives around the display
Older instructions sometimes recommend using a sharp blade to remove screw covers. A plastic pick or non-metallic spudger is safer and less likely to damage the bezel, panel or wiring.
Can a CCFL laptop screen be upgraded to LED?
A CCFL panel cannot normally be replaced directly with an LED-backlit panel. The two systems can use different display cables, power connections, motherboard circuits, mounting arrangements and panel electronics.
Specialist conversion kits have existed for certain models, but they are not universal. A conversion may require:
- A compatible LED panel with the correct resolution and fittings
- A replacement or modified display cable
- A backlight power conversion circuit
- Changes to the inverter connection or lid wiring
- Confirmed BIOS, graphics and brightness-control compatibility
Treat CCFL-to-LED conversion as a model-specific modification.
For a straightforward repair, replace like for like unless a complete and proven conversion is documented for the exact laptop model.
Why can the same laptop model use CCFL or LED?
Some laptop names remained in use across several production revisions. Early versions may have used a CCFL screen, while later versions changed to LED backlighting without a major change to the consumer-facing model name.
Manufacturers may also have offered different display options within the same laptop family. The motherboard revision, display cable, lid assembly and backlight circuitry may differ even when the case looks almost identical.
This is why searching by the broad laptop name alone can produce both CCFL and LED replacement options. The exact product code, serial-based parts list and original panel model are safer identifiers.
What must match when replacing an older laptop screen?
| Specification |
Why it matters |
| Backlight type |
CCFL and LED power systems are different and are not normally direct substitutes. |
| Number of CCFL lamps |
A dual-lamp screen requires the correct lamp and inverter arrangement. |
| Panel model and revision |
The full manufacturer code is the strongest starting point for identifying the original screen. |
| Screen size and aspect ratio |
Older laptops may use 4:3, 16:10 or 16:9 panels with different physical dimensions. |
| Resolution |
The display cable, graphics system and panel must support the same native resolution. |
| Signal interface |
Older LVDS connections vary by pin count and wiring; they are not universal. |
| Connector position |
The original cable must reach the panel without being stretched or trapped. |
| Mounting brackets |
Side brackets, tabs and panel thickness must fit the original lid and bezel. |
| Inverter compatibility |
The inverter must suit the lamp count, connector and electrical requirements. |
| Brightness control |
Some replacement combinations can produce no brightness control or an unlit backlight. |
For help reading a panel label, see
how to identify your laptop screen model number
.
Common signs of a failing CCFL lamp or inverter
Very dim image
A faint desktop may still be visible when a torch is shone at the screen.
Pink or reddish tint
An ageing fluorescent lamp may appear pink when first switched on.
Flickering backlight
The light may flash, pulse or switch off after a few seconds.
Uneven illumination
One edge may appear darker when the lamp is weak or damaged.
Delayed start
The lamp may take longer to reach normal brightness.
No light but a visible image
The LCD may still be producing a picture while the backlight system has failed.
These symptoms do not prove whether the lamp, inverter, cable, lid switch, motherboard or panel is faulty. Diagnose the complete system before ordering parts.
How to buy the correct legacy replacement screen
-
Use the exact laptop product code.
Do not rely only on the family name printed beside the keyboard or on the display lid.
-
Match the full panel model.
Include the suffix, revision and hardware code from the rear label.
-
Confirm CCFL or LED backlighting.
Look for the inverter and lamp leads rather than trusting a generic product title.
-
Check single-lamp or dual-lamp construction.
This is particularly important on larger legacy screens.
-
Verify the interface and connector.
Older LVDS panels with similar-looking plugs may use different pinouts and resolutions.
-
Compare the physical mounting.
Confirm panel thickness, brackets, screw positions and connector location.
-
Ask before ordering if any detail is uncertain.
Send the original panel code and clear photographs of the rear label, inverter and connections.
Our recommendation

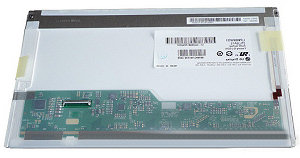

The photographs in this guide are useful for recognising the broad difference between classic CCFL and LED-backlit laptop screens. They should not replace checking the original panel model and full specification.
For an older laptop, replace the complete display specification—not just the screen size.
Match the backlight type, lamp count, inverter arrangement, panel model, resolution, signal interface, connector position and mounting design before ordering.
Where the laptop was sold in both CCFL and LED versions, assume that internal parts may differ until the original screen, cable and product revision have been confirmed.
Frequently asked questions
What is a CCFL laptop screen?
A CCFL laptop screen is an LCD panel illuminated by one or more Cold Cathode Fluorescent Lamps. It normally uses a separate high-voltage inverter board.
How can I tell whether my laptop screen is CCFL or LED?
A classic CCFL system normally has a separate inverter below the screen and one or two lamp wires ending in small white plugs. An LED-backlit panel normally has neither the separate CCFL inverter nor those lamp plugs.
Can I replace a CCFL screen with an LED screen?
Not as a direct swap in most laptops. The cable, backlight power, motherboard connection, panel electronics and mounting may differ. Only use a conversion proven for the exact laptop model.
Is a CCFL screen still an LCD?
Yes. LCD describes the image-forming panel. CCFL describes the fluorescent backlight used behind that LCD.
Does an LED laptop screen use an inverter?
It does not normally use the separate high-voltage CCFL inverter fitted below older screens. LED backlight-driving electronics are instead integrated into the panel or display circuitry.
What is the orange cable on some LED screens?
It is normally a flat flexible cable or panel flex connected to the screen electronics. It is not a CCFL lamp lead or a separate CCFL inverter connection.
Why are both CCFL and LED screens listed for my laptop?
The laptop family may have been produced in different revisions or display configurations. Check the exact product code, original panel, cable and inverter arrangement before ordering.
What is the safest way to identify an older replacement screen?
Match the complete model number on the original panel and confirm the backlight type, lamp count, resolution, connector, mounting and inverter arrangement.
